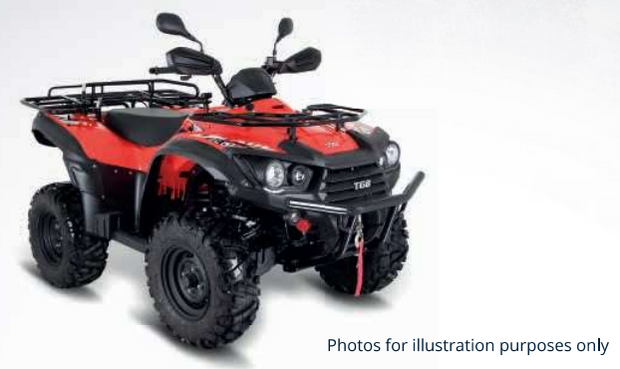

TGB Blade 520

Regular price

Engine

• Displacement - 503cc

• TYPI - 4-Stroke SOHC, 4-Valve

• Cylinder - Single

• Fuel system - EFI

• Cooling - Liquid

• HP - 39

Powertrain

• Transmission - V belt C.V.T Automatic

• Final drive - Shaft Drive

• Drive system - Selectable 2wd/4wd

• Differential lock - Standard

• Gear selection - L/H/N/R

• Engine braking - Standard

• Front brake - 200mm hydraulic discs

• Rear brake - 180mm hydraulic discs

• Hand brake - All 4 Wheels

• Foot brake - All 4 Wheels

Suspension/Wheels/Tires

• Front Suspension - Independent Double A-arm

• Rear Suspension - Independent Double A-arm

• Front Travel - 22.1 cm

• Rear Travel – 24.0 cm

• Wheels – Steel

• Front Tires - AT 25 X 8-12

• Rear Tires - AT 25 X 10-12

Dimensions

• Length - 2120mm

• Width - 1240mm

• Height - 1205mm

• Wheelbase - 1290mm

• Seat Height - 91.4cm

• Ground Clearance - 30.5cm

• Towing Capacity - 555.7kg

• Dry Weight - 350kg

• Fuel Capacity - 18 ltr

• Seat Capacity - Single

• Front Rack - 45kg

• Rear Rack - 75kg

Features

• Power Steering - No

• Front Brushguard - Opt

• Front Bumper - No

• Rear Hitch - Standard/ 2" receiver

• Winch - Opt

• Hand Guards - Opt

• Accessory Outlet - Yes
